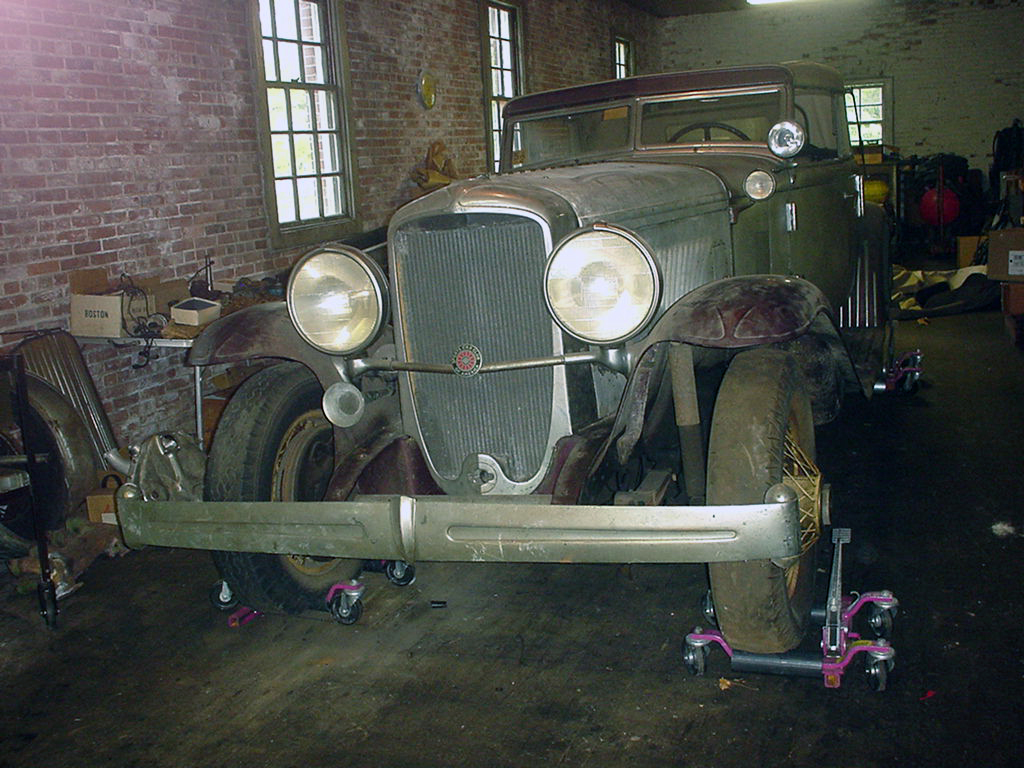

J-505A about to be moved for the first time in fifty-two years.
1 / 120

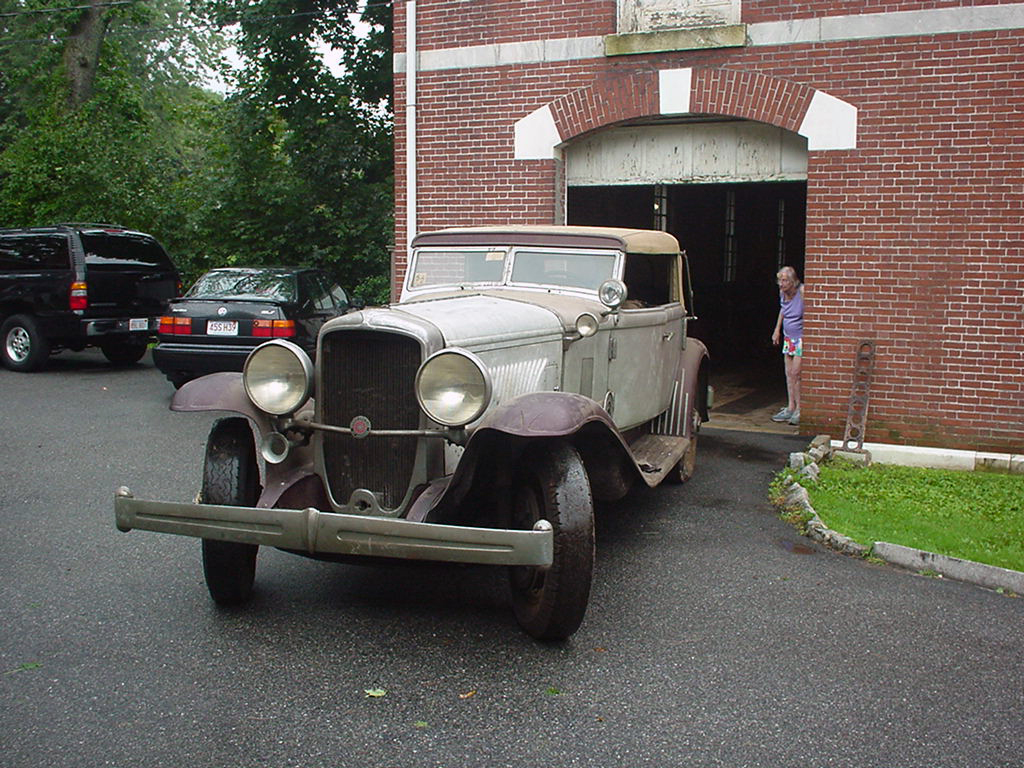

Mrs. Cade (owner for the past 61 years) bids the car farewell.
2 / 120

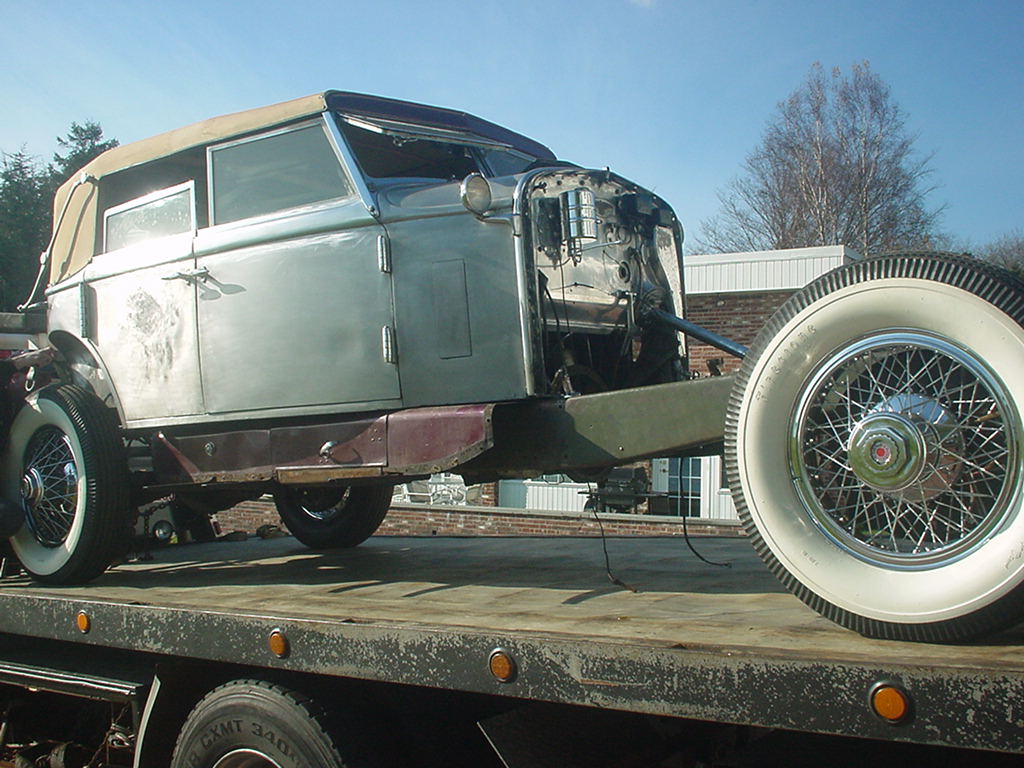

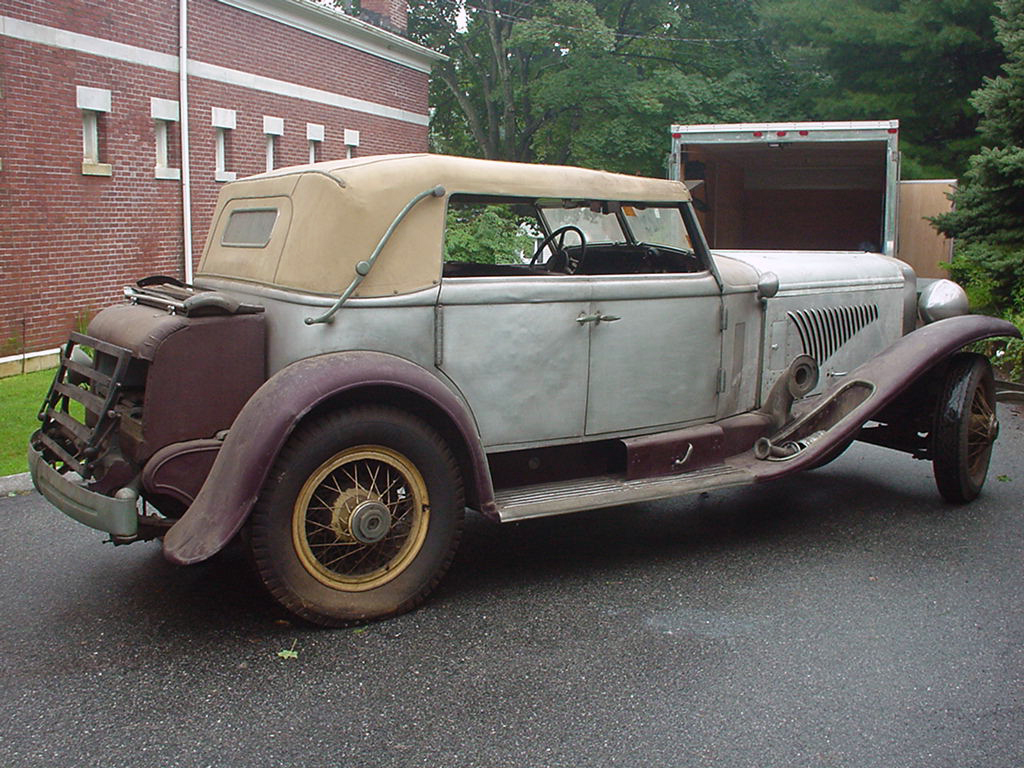

Ready to travel to her new home in Rhode Island.
3 / 120
Just arrived at the Shappy estate.
4 / 120
Headlights and front bumpers are finally back from plating and fitted to the car.
5 / 120

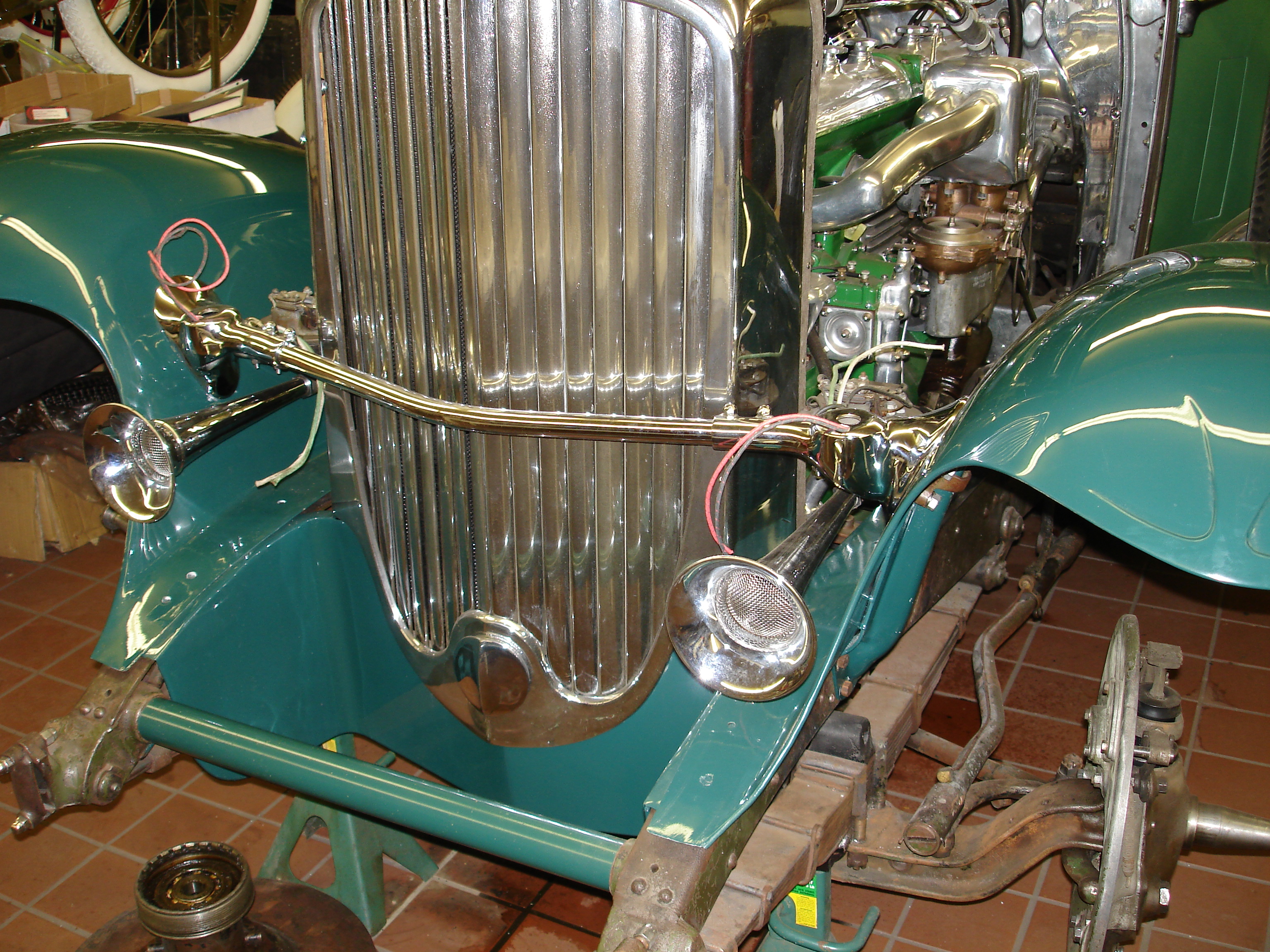

Horns replaced, wired and working.
6 / 120
Trunk restored and re-fitted to body.
7 / 120
Work on side mount hardware and wheel well trim completed.
8 / 120

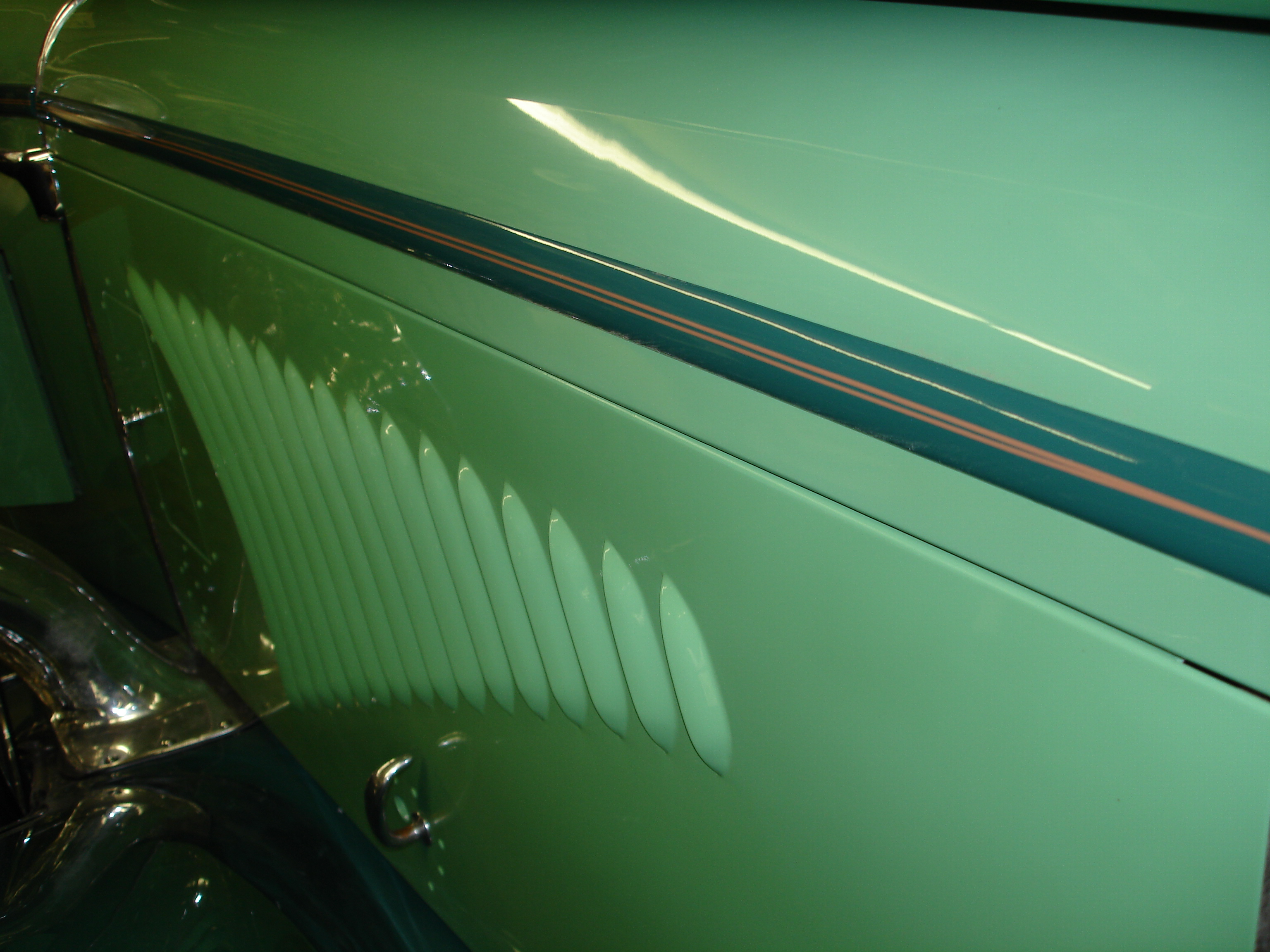

Hood pin striping finished.
9 / 120

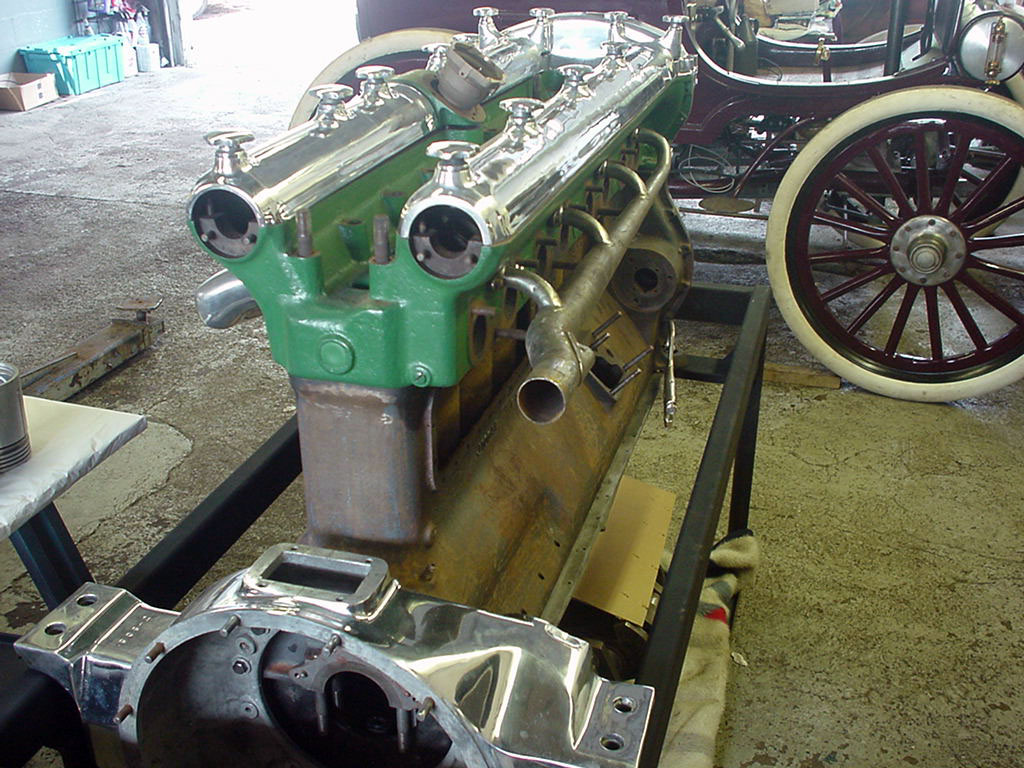

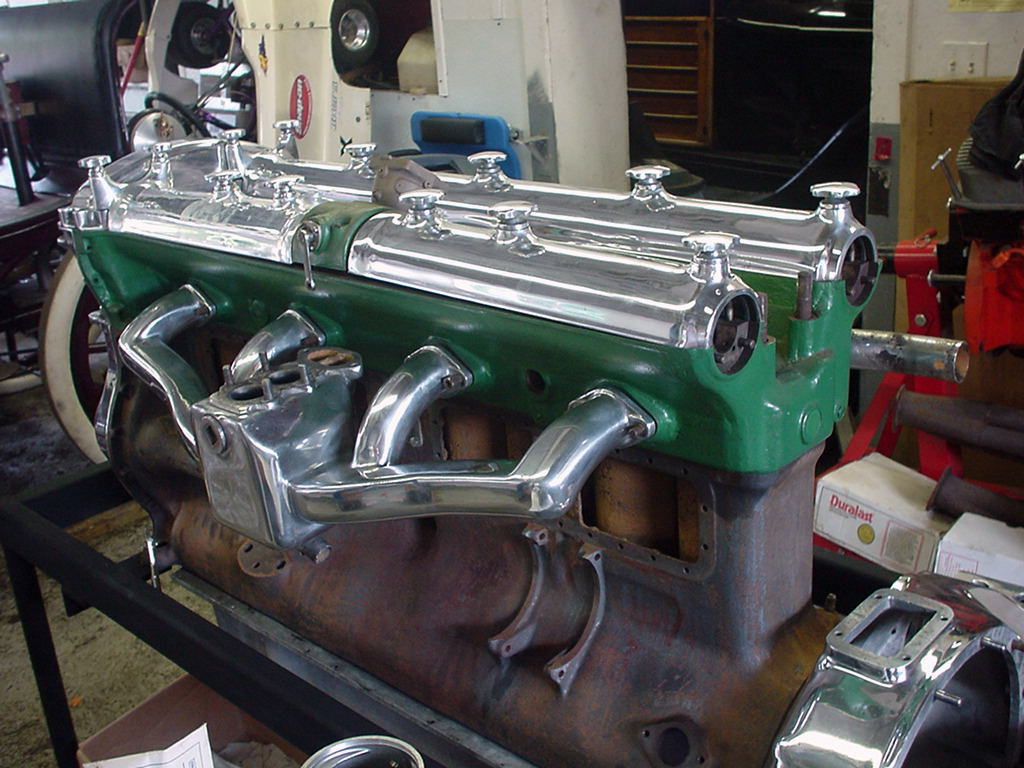

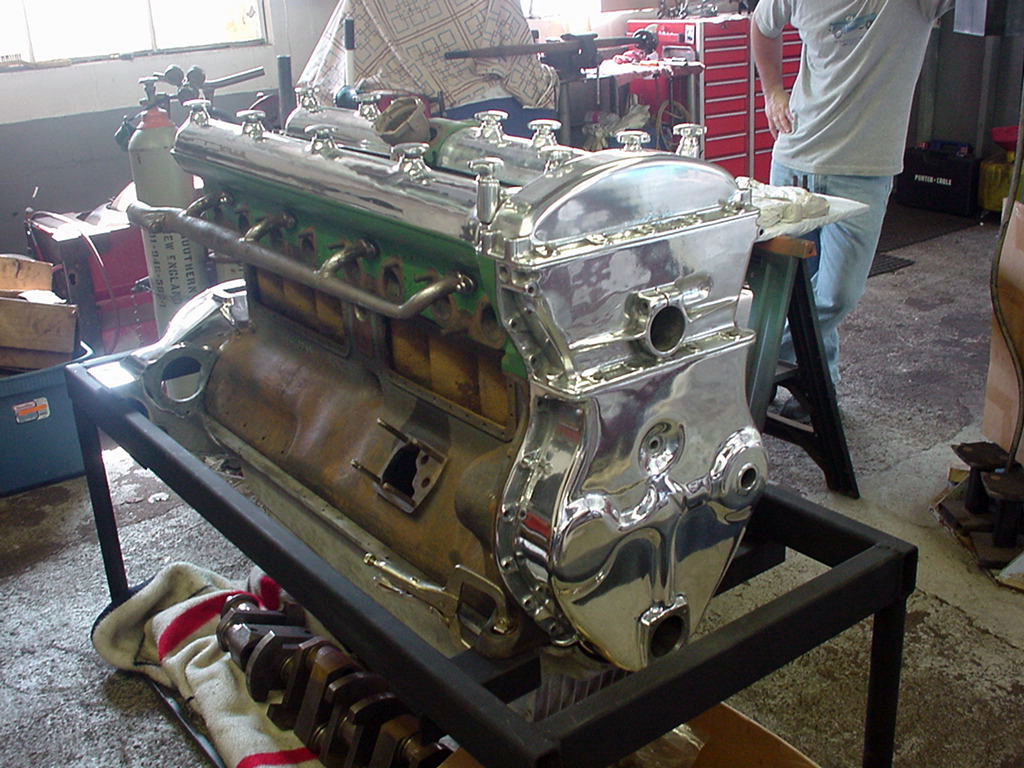

Engine being assembled to determine inventory of parts. (left side)
10 / 120
Engine being assembled to determine inventory of parts. (rear view)
11 / 120
Engine being assembled to determine inventory of parts. (right front view)
12 / 120

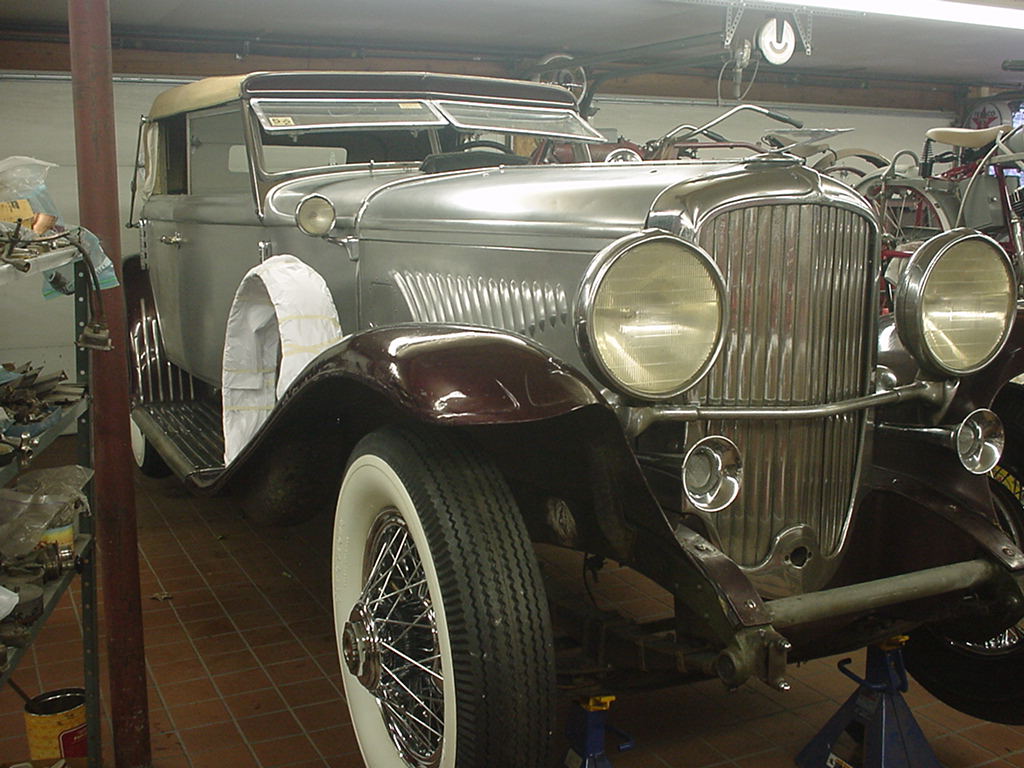

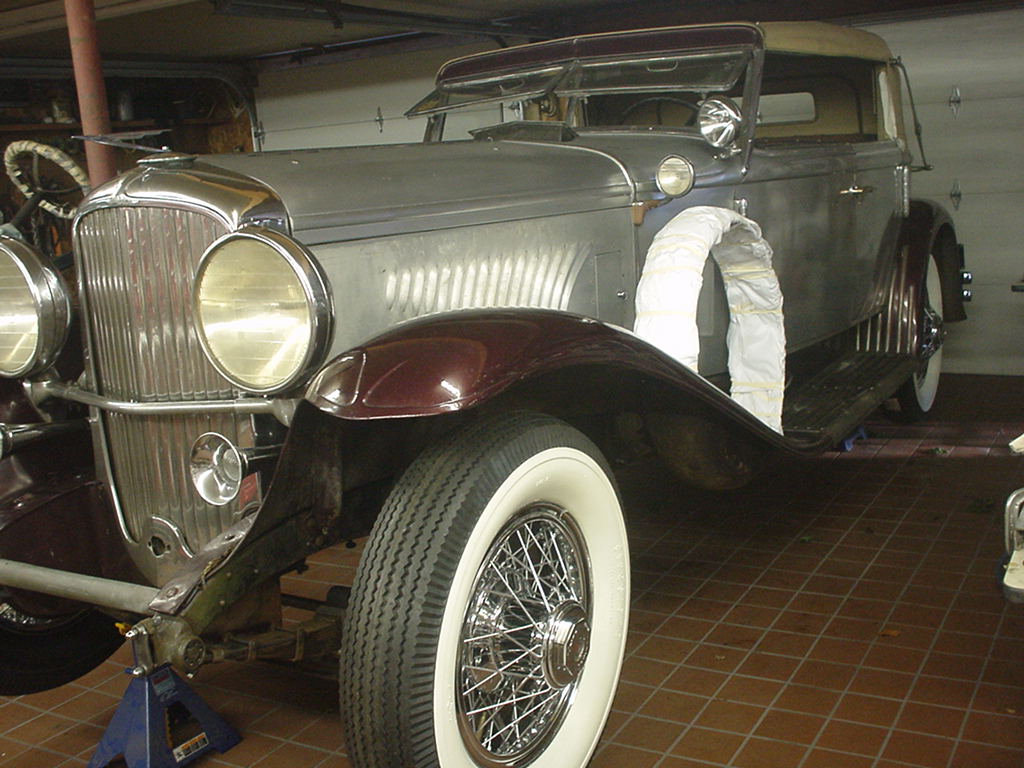

Body after it was washed and the original chrome was polished.
13 / 120
Correct bumper found and fitted to car.
14 / 120

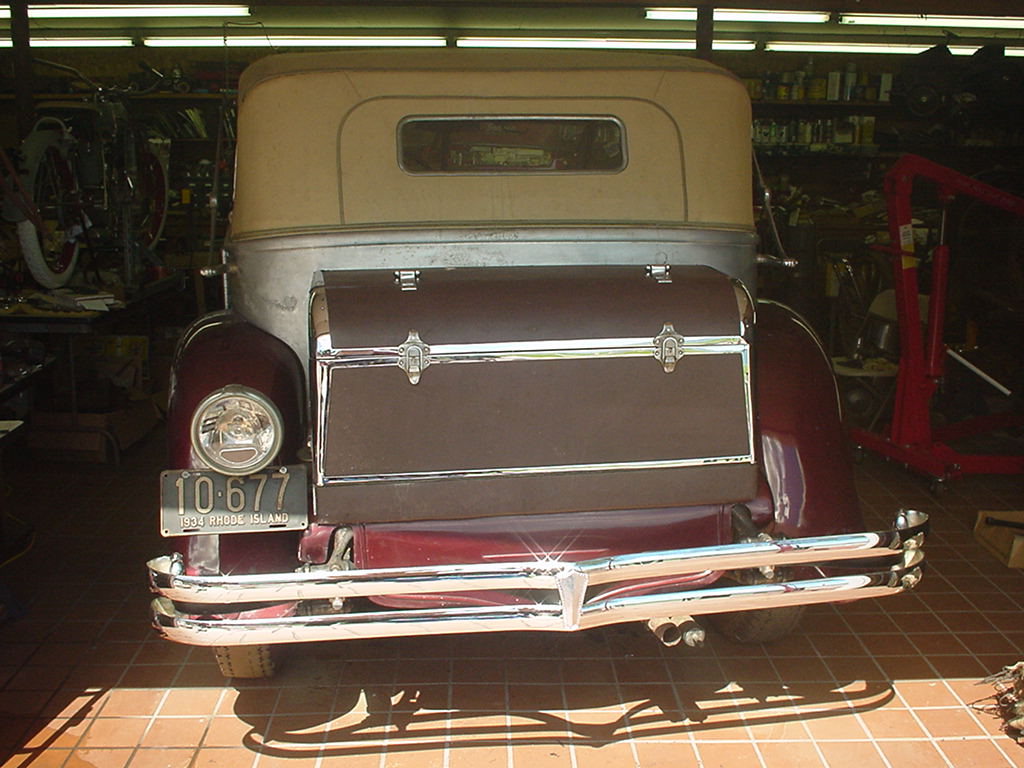

Rear view showing top before cleaning.
15 / 120

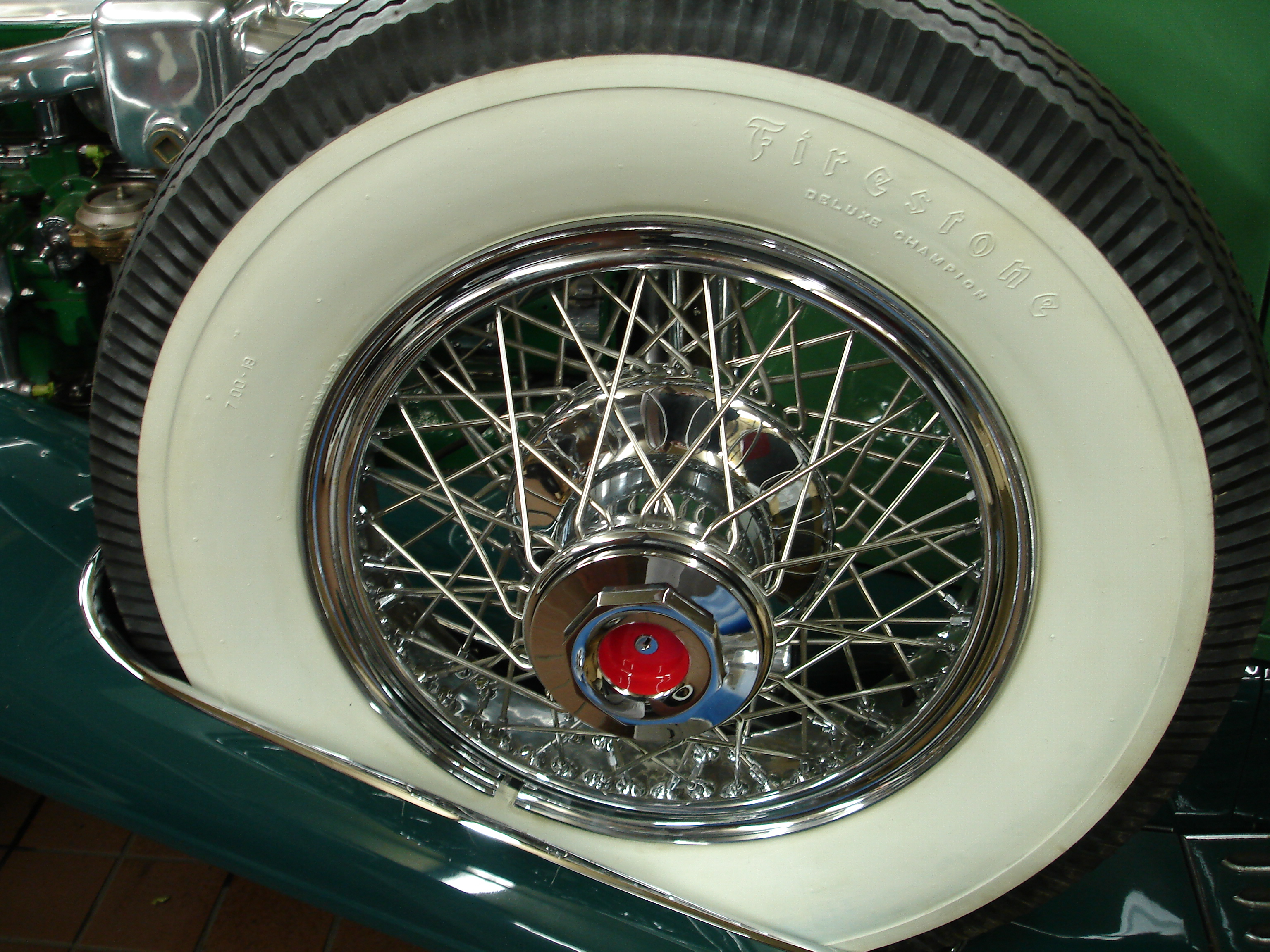

Newly chromed wire wheels and tires. (right side)
16 / 120
Newly chromed wire wheels and tires. (left side)
17 / 120
Fenders, hood, and other body parts have been removed, and the car is being moved to the paint shop.
18 / 120
Fenders, hood, and other body parts have been removed, and the car is being moved to the paint shop.
19 / 120

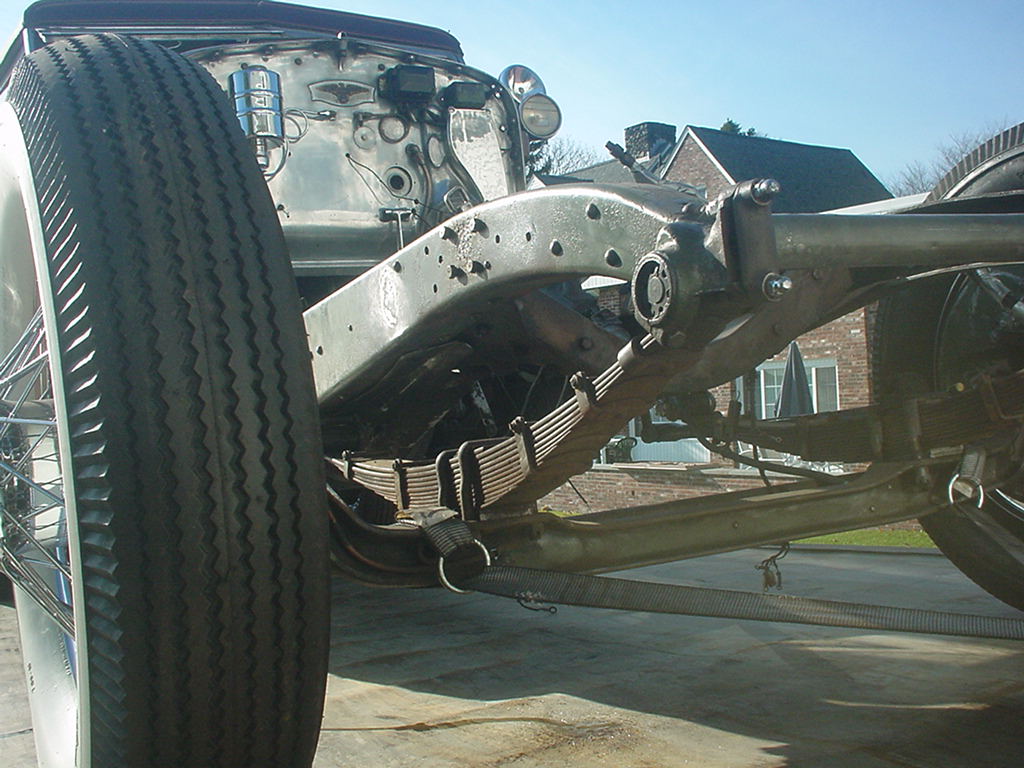

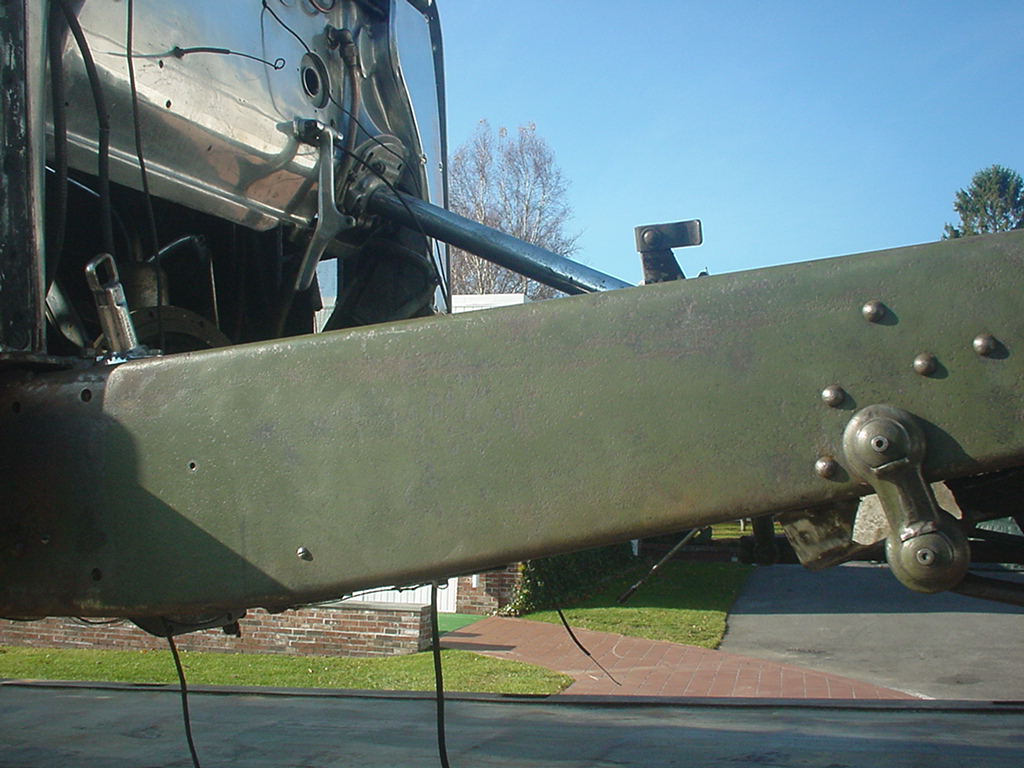

Frame showing original paint. The frame will be kept original and will not be repainted.
20 / 120
Frame showing original paint. The frame will be kept original and will not be repainted.
21 / 120
Rear brake drums have been "turned"
22 / 120
Brian Joseph has supplied new Kevlar brake shoes.
23 / 120
Body being prepared for primer.
24 / 120
Body being prepared for primer.
25 / 120
Body being prepared for primer.
26 / 120
Body work completed and primer applied.
27 / 120
Body work completed and primer applied.
28 / 120
Body work completed and primer applied.
29 / 120
Body work completed and primer applied.
30 / 120
New paint on body before clear coating and micro sanding.
31 / 120
New paint on body before clear coating and micro sanding.
32 / 120
New paint on body before clear coating and micro sanding.
33 / 120
New paint on body before clear coating and micro sanding.
34 / 120
Headlights and front bumpers are finally back from plating and fitted to the car.
35 / 120
Rear bumpers back from plating and installed. Bumpers were supplied by Randy Ema.
36 / 120
Engine completely rebuilt after many tedious hours of preparation.
37 / 120
Engine completely rebuilt after many tedious hours of preparation.
38 / 120
Sean Brayton hearing engine run and performing the fine tuning.
39 / 120
Micro sanding, clear coating, and buffing complete. Wow!!!!
40 / 120
Micro sanding, clear coating, and buffing complete. Wow!!!!
41 / 120
Micro sanding, clear coating, and buffing complete. Wow!!!!
42 / 120
Duesenberg engine being loaded on flatbed for journey back to Brock's paint shop to be reunited with car.
43 / 120
Duesenberg engine being loaded on flatbed for journey back to Brock's paint shop to be reunited with car.
44 / 120
Engine being installed in J-505 after a fifty two year separation.
45 / 120
Engine being installed in J-505 after a fifty two year separation.
46 / 120
Engine being installed in J-505 after a fifty two year separation.
47 / 120
With the engine newly installed, J- 505 is ready for the trip back to the Shappy facility, where restoration will be completed.
48 / 120
J-505 arriving at the Shappy shop.
49 / 120
J-505 arriving at the Shappy shop.
50 / 120
Home at last.
51 / 120
Left side showing polished aluminum and original chrome. Also check out the original paint on the chassis.
52 / 120
Right side showing polished aluminum and original chrome.
53 / 120
Dick Shappy speaking with world renowned Duesenberg expert and historian Fred Roe at the Newport Concours de Elegance held at Newport, Rhode Island May 26-28, 2006. Fred's book, "Duesenberg The Pursuit of Perfection" is regarded as the most informative and accurate compilation of Duesenberg history put in print to date.^P
(note: Fred's book is almost impossible to find. Dick informs us that he was able to acquire one online recently after extensive searching at a cost of $350.00)
(note: Fred's book is almost impossible to find. Dick informs us that he was able to acquire one online recently after extensive searching at a cost of $350.00)
54 / 120
J-505 arriving at "Nick the Russian's" trim shop.
55 / 120
Front and rear seats upholstered and ready to be installed.
56 / 120
Old original leather provides a good pattern but must be replaced.
57 / 120
Dick Shappy and Randy Ema posing in front of J-505. In mid May, noted Duesenberg historian and expert Randy Ema from California, visited the Shappy restoration facility and offered his expert advice pertaining to the Duesenberg's restoration. Thank you Randy, it was indeed a pleasure to have you here to share your knowledge with us.
58 / 120
Front seats after installation.
59 / 120
Back of front seat and rear floor rug after installation.
60 / 120
Left front door panel completed.
61 / 120
Before rugs are installed, "underlayment" must be applied
62 / 120
Rear seats and arm rests installed after underlayment and rugs.
63 / 120
Left rear section complete and ready for rug.
64 / 120
Left front "kick pad" installed.
65 / 120
The dashboard has been removed from the car, and the old wiring harness has been detached. The next step will be to remove and clean all the gauges.
66 / 120
New green porcelain exhaust manifolds finally fitted to engine.
67 / 120
Dashboard with new leather covering and restored instruments in place. The original chrome plating is in such fine condition it required only a thorough cleaning.
68 / 120
Nick, the upholsterer, applies new leather to the "above dash" area.
69 / 120
Brock is fitting the newly painted and dent-free gas tank cover.
70 / 120
Tail light with new wiring in place.
71 / 120
Brock fitting the freshly painted rear fender on body.
72 / 120
The left rear fender mounted with fender welting in place.
73 / 120
Front view of restored left front fender.
74 / 120
Side view of left front fender and side mount wheel bracket.
75 / 120
Left sidemount trim and running board restored and in place.
76 / 120
Headlight bar replated and attached to newly painted fenders.
77 / 120
Freshly painted hood being placed on car.
78 / 120
She is really beginning to look like a lady.
79 / 120
Frontal view with "new" hood
80 / 120
Left running board (minus outer molding) and original fender spears in place.
81 / 120
Hood side panels completed and attached.
82 / 120
All body work completed.
83 / 120
September 13th 2006 is a very important day for J-505 as this is the first time that this car moved under it's own power in fifty four years (1952). We were tempted to take her for a short cruise through the neighborhood but decided to wait until the front seat backs are installed. She is scheduled to return to the upholstery shop in the next week for interior completion and new top.
84 / 120
Right rear interior section and arm rest wrapped in new leather.
85 / 120
Top had to be removed to allow seat back top to be wrapped.
86 / 120
Left rear interior section including arm rest completed.
87 / 120
Exterior view of completed right rear arm rest.
88 / 120
Top fabric and metal brackets and top irons removed and ready for new chrome plating. Note: This is the first time we have seen J-505 without her top.
89 / 120
New leather applied to kick pad and cowl vent interior. Also note new cowl vent screens and leather covered steel door holds.
90 / 120
New rug applied to driver's compartment floor area.
91 / 120
Door panels complete.
92 / 120
Rear seat area almost complete.
93 / 120
New snaps for top installed on right side.
94 / 120
Rear of front seat upholstery work nearly complete.
95 / 120
All top hardware and irons have been replated, painted and are ready for installation.
96 / 120
Right rear door window crank gear had to be reproduced to make window operational.
97 / 120
Bob Dwyer nearly finished with rear top bow duplication.
98 / 120
Front floor compartment and under dash areas are complete.
99 / 120
New top header bow with restored chrome brackets are now in place.
100 / 120
This very complex top is finally reassembled after new chrome and paint and leather has been applied.
101 / 120
The new rear top bow has been attached to the top assembly. Over one hundred twenty hours have been logged to date in the top restoration phase not including chrome plating.
102 / 120
We decided to restore the door sills to compliment the beautiful new interior.
103 / 120
Newly painted header bow cover.
104 / 120
Rear top bow with new leather covering attached to restored top irons.
105 / 120
The very complex top assembly after restoration and ready for the finishing canvas.
106 / 120
View of left side of completed top assembly.
107 / 120
Nick, preparing the rear window on the top liner.
108 / 120
Top canvas cut and ready to be fitted.
109 / 120
All the walnut interior wood after receiving the first varnish coat.
110 / 120
Nick Pitcu inspecting the new top.
111 / 120
Top interior showing rear window and leather wrapped top bows and irons.
112 / 120
Left rear view of completed top.
113 / 120
Interior mahogany door trim before the final coat of varnish is applied.
114 / 120
Finished mahogany, window crank, door handle and door panel in place on driver's door.
115 / 120
Rear seat instrumentation fitted to restored rear compartment mahogany.
116 / 120
Rear view of completed car.
117 / 120
Restored Duesenberg Derham J-505 displayed at the Dick Shappy residence, June 2007.
118 / 120
Dick Shappy posing with his Duesenberg Derham J-505 at the Newport Concourse D'elegance in Newport Rhode Island July 27 to 29th 2007
119 / 120
Duesenberg trunk upholstery completed by Nick "The Russian".
120 / 120
